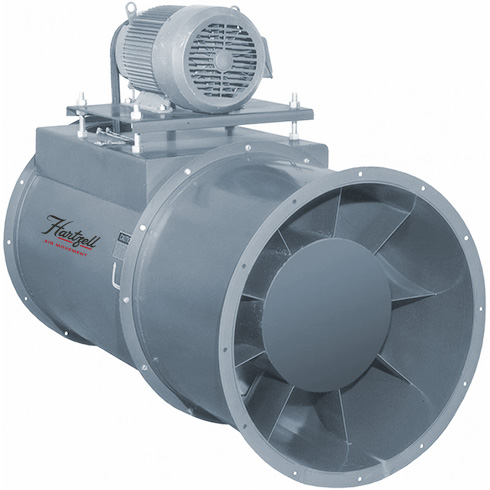

Vaneaxial Fans
A high-performance option, vaneaxial fans are designed to move large volumes of air at high speeds and pressures efficiently. Featuring streamlined vanes to guide airflow, they provide precise control and minimize turbulence, making them ideal for applications requiring consistent, high-pressure airflow, such as HVAC systems, power plants, and process ventilation. Compact design makes vaneaxial fans a space-saving choice, while delivering exceptional energy efficiency and durability. Constructed from materials like aluminum, steel, or specialty alloys, they can withstand challenging conditions, including high temperatures and corrosive environments.
- Airflow: Capacities up to 300,000 CFM
- Static Pressure: Up to 30” WG
- Temperature Range: Up to 1,000°F
- Fan Size: 12″ to 84″
- Material Type: Steel, aluminum, fiberglass, and specialty alloys
- HARTZELL
- IAP
- PDF DOWNLOADS
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| AFP | Axial Flow Fan | Various Alloys | Up to 118,000 CFM | Up to 4 in. WG |
| BIF | Backward Inclined Fan | Various Alloys | Up to 440,000 CFM | Up to 40 in. WG |
| MFC | Forward Curved Fan | Various Alloys | Up to 175,000 CFM | Up to 16 in. WG |
| OPB | Radial Blade Fan | Various Alloys | Up to 145,000 CFM | Up to 80 in. WG |
| BC | Backward Curved Fan | Aluminum, Stainless Steel | Up to 180,000 CFM | Up to 36 in. WG |
| BI | Backward Inclined Fan | Aluminum, Stainless Steel | Up to 150,000 CFM | Up to 20 in. WG |
| HDBI | Backward Inclined Fan | Steel, Aluminum | Up to 150,000 CFM | Up to 25 in. WG |
| CPAF | Airfoil Plug Fan | Steel, Aluminum | Up to 42,000 CFM | Up to 18 in. WG |
| CPF | Backward Inclined Plug Fan | Steel, Aluminum | Up to 100,000 CFM | Up to 25 in. WG |
| SQBI | Backward Inclined Square Fan | Steel, Aluminum | Up to 28,141 CFM | Up to 23 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| VAX-12 | Vaneaxial Fan | Steel, Aluminum | Up to 50,000 CFM | Up to 5 in. WG |
| VAX-18 | Vaneaxial Fan | Steel, Aluminum | Up to 100,000 CFM | Up to 6 in. WG |
| VAX-24 | Vaneaxial Fan | Steel, Aluminum | Up to 150,000 CFM | Up to 8 in. WG |
| VAX-30 | Vaneaxial Fan | Steel, Aluminum | Up to 200,000 CFM | Up to 10 in. WG |
| VAX-36 | Vaneaxial Fan | Steel, Aluminum | Up to 250,000 CFM | Up to 12 in. WG |
| VAX-42 | Vaneaxial Fan | Steel, Aluminum | Up to 300,000 CFM | Up to 14 in. WG |
| VAX-48 | Vaneaxial Fan | Steel, Aluminum | Up to 350,000 CFM | Up to 16 in. WG |
| VAX-54 | Vaneaxial Fan | Steel, Aluminum | Up to 400,000 CFM | Up to 18 in. WG |
| VAX-60 | Vaneaxial Fan | Steel, Aluminum | Up to 450,000 CFM | Up to 20 in. WG |
| VAX-66 | Vaneaxial Fan | Steel, Aluminum | Up to 500,000 CFM | Up to 22 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
Things to Consider When Buying Vaneaxial Fans
When specifying vaneaxial fans, think about the required airflow capacity (CFM) and static pressure to ensure the fan meets your performance needs. Assess the operating temperature range and choose materials that can withstand harsh or corrosive environments. Fan size is also important; vaneaxial fans are typically compact but must fit within the designated space. Look for features like energy efficiency, noise reduction, and ease of maintenance to optimize long-term operational costs. Additionally, evaluate customization options and ensure compliance with industry standards for safety and performance in your specific application.
J.E. Phillips Company Serves Vaneaxial Fan Application Needs
J.E. Phillips Company meets your specific application needs by working with you to understand your facility and processes. We are proud to partner with Hartzell and IAP to offer vaneaxial fans in configurations to meet a wide array of application needs.
