Pressure Blowers
Pressure blowers move modest air volumes against static pressures that stall a general purpose centrifugal fan. J.E. Phillips Co., Inc. has represented Hartzell since 1969 and matches Hartzell, Cincinnati Fan, IAP, and Daniels Fans models to your system resistance curve.
- CFM: capacities up to 145,000 CFM
- Static Pressure: 80” WG
- Temp Range: Up to 1200°F (high-temperature models available)
- Fan Size: Up to 60″, sizes vary by application
- Material Type: Aluminum, carbon steel, stainless steel
Key Takeaways:
- Static pressure ratings reach 80 inches water gauge
- Corrosion resistant fiberglass and stainless housings available
- Hartzell, Cincinnati Fan, IAP, and Daniels Fans represented
- HARTZELL
- CINCINNATI FAN
- IAP
- DANIELS FANS
- Plastec Products
- PDF DOWNLOADS
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Series 04 | In-line Centrifugal Fan | Steel, 304SS, 316SS, AMCA A, B, C | Up to 75,000 CFM | Up to 16 in. WG |
| Series 05/05F | Backward Inclined Industrial Exhauster Centrifugal Fan, Flanged Mount Type Available | Steel, 304SS, 316SS, AMCA A, B, C | Up to 46,000 CFM | Up to 46 in. WG |

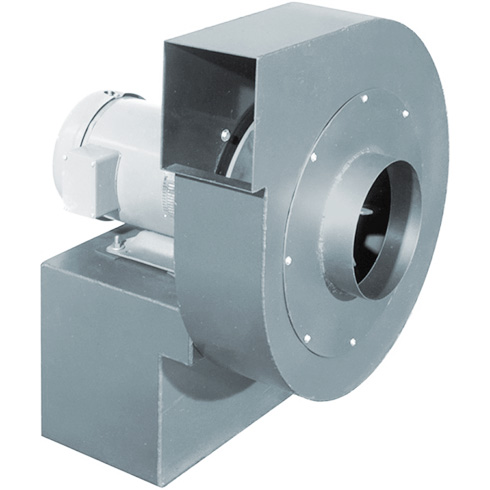

| Series 07/07T/07M | Backward Inclined Pressure Blower, Turbo and Marine Duty available | Steel, Aluminum, 304SS, 316SS, AMCA A, B, C, Hot Dipped Galvanized | Up to 5,250 CFM | Up to 60 in. WG |
| Series 42 | Fiberglass Pressure Blower | Fiberglass | Up to 1,500 CFM | Up to 12” WG |
| Series 40 | Fiberglass In-line Centrifugal Fan | Fiberglass | Up to 90,000 CFM | Up To 12” W.G. |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|

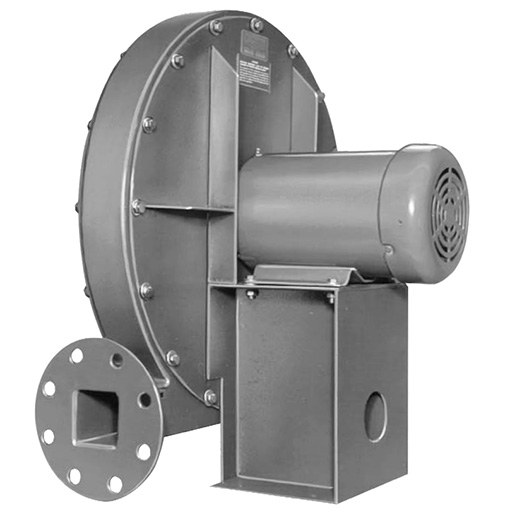

| HP-I | Centrifugal High Pressure Blower | Cast Aluminum, Steel | Up to 1,200 CFM | Up to 30″ WG |
| HP-II | Centrifugal High Pressure Blower | Cast Aluminum, Stainless Steel | Up to 7,000 CFM | Up to 78″ WG |
| PB | Cast Aluminum Pressure Blower | Cast Aluminum | Up to 4,500 CFM | Up to 20″ WG |
| PBS | Fabricated Steel Pressure Blower | Steel, Stainless Steel | Up to 4,462 CFM | Up to 20″ WG |
| SPB | Centrifugal Pressure Blower | Die-Formed Steel | Up to 4,075 CFM | Up to 18″ WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| CBI-HP | Centrifugal High Pressure Blower | Stainless Steel, Carbon Steel | Up to 50,000 CFM | Up to 60″ WG |
| FCB-HP | Forward Curved High-Pressure Blower | Carbon Steel, Stainless Steel | Up to 40,000 CFM | Up to 45″ WG |
| RB-HP | Radial Blade High-Pressure Blower | Stainless Steel, Carbon Steel | Up to 25,000 CFM | Up to 50″ WG |
| HTPB-HP | High-Temperature Pressure Blower | Stainless Steel | Up to 30,000 CFM | Up to 40″ WG |
| DDPB-HP | Direct Drive Pressure Blower | Cast Aluminum, Steel | Up to 15,000 CFM | Up to 35″ WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| BI-HP | Backward Inclined Centrifugal High Pressure Blower | Aluminum, Stainless Steel | Up to 150,000 CFM | Up to 20″ WG |
| RHP | Radial High-Pressure Blower | Stainless Steel | Up to 80,000 CFM | Up to 40″ WG |
| AFP-HP | Axial Flow High-Pressure Blower | Stainless Steel, Aluminum | Up to 118,000 CFM | Up to 4″ WG |
| OPB-HP | Open Paddle Wheel High-Pressure Blower | Stainless Steel | Up to 145,000 CFM | Up to 80″ WG |
| MFC-HP | Forward Curved High-Pressure Blower | Aluminum, Stainless Steel | Up to 175,000 CFM | Up to 16″ SP |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Plastec 15 | Direct Drive Forward Curved Utility Blower | UV-Treated High-Density Polypropylene | Up to 650 CFM | Up to 2.75 in. WG |
| Plastec 20 | Direct Drive Forward Curved Utility Blower | Polypropylene, Optional 304 Stainless Steel Impeller | Up to 1,800 CFM | Up to 6.5 in. WG |
| Plastec 25 | Direct Drive Forward Curved Utility Blower | Polypropylene, Optional 304 Stainless Steel or Aluminum Impeller | Up to 3,300 CFM | Up to 8 in. WG |
| Plastec 30 | Direct Drive Forward Curved Utility Blower | Polypropylene, Optional 304 Stainless Steel Impeller | Up to 4,000 CFM | Up to 4 in. WG |
| Plastec 35 | Direct Drive Forward Curved Utility Blower | Polypropylene, Optional 304 Stainless Steel Impeller | Up to 5,000 CFM | Up to 5.5 in. WG |
| Plastec 50 | Direct Drive Backward Inclined Utility Blower, VFD Controlled | Injection and Blow-Molded Polypropylene | Up to 11,700 CFM | Up to 8 in. WG total pressure |
| Storm 10 | Direct Drive Forward Curved Blower | UV-Treated High-Density Polypropylene | Verify | Verify |
| Storm 12 | Direct Drive Forward Curved Blower | UV-Treated High-Density Polypropylene | Verify | Verify |
| Storm 14 | Direct Drive Forward Curved Blower | UV-Treated High-Density Polypropylene | Verify | Verify |
| Storm 16 | Direct Drive Forward Curved Blower | UV-Treated High-Density Polypropylene | Verify | Verify |
| JET 20 | Direct Drive Forward Curved Inline Fan | Polypropylene, Optional 304L Stainless Steel Impeller | Up to 1,200 CFM | Up to 4.5 in. WG |
| JET 25 | Direct Drive Forward Curved Inline Fan | Polypropylene, Optional 304L Stainless Steel or Aluminum Impeller | Up to 1,600 CFM | Up to 9 in. WG |
| JET 30 | Direct Drive Forward Curved Inline Fan | Polypropylene, Optional 304L Stainless Steel Impeller | Up to 2,500 CFM | Up to 3.5 in. WG |
| PSS15BI | Direct Drive Backward Inclined Blower | Electropolished 316 Stainless Steel | Up to 600 CFM | Up to 4.5 in. WG |
| PSS20 | Direct Drive Forward Curved Blower | Electropolished 316 Stainless Steel | Up to 1,800 CFM | Up to 8 in. WG |
| PSS20BI | Direct Drive Backward Inclined Blower | Electropolished 316 Stainless Steel | Up to 1,200 CFM | Up to 9 in. WG |
| PSS35BI | Direct Drive Backward Inclined Blower | Electropolished 316 Stainless Steel | Up to 3,000 CFM | Up to 10 in. WG |
| PSS40BI | Direct Drive Backward Inclined Blower | Electropolished 316 Stainless Steel | Up to 5,000 CFM | Up to 12 in. WG |
How Do Pressure Blowers Handle High System Resistance?
Long duct runs, cyclones, and heavy particulate loads build back pressure that flattens a general purpose fan’s output. These blowers use narrow, high speed wheels that hold airflow steady as static pressure climbs.
Supporting Details:
- Direct drive arrangements eliminate belt tensioning and reduce scheduled maintenance intervals
- Field rotatable housings allow discharge repositioning without reordering the blower
- Marine duty and turbo variants available on the Hartzell Series 07 platform
Why Source Pressure Blowers Through J.E. Phillips Co.?
J.E. Phillips Co. opened in October 1969 with Hartzell as its first line, then added IAP, Cincinnati Fan, and Daniels Fans. Carrying four blower platforms means we compare options against your data rather than fitting your job to one catalog.
Proof Points:
- 55+ years representing air movement lines across California and Nevada
- Third generation ownership: the same people answer your call next year
- Direct factory engineering access: sizing questions reach the manufacturer’s engineers
Frequently Asked Questions About Pressure Blowers
What is the difference between a pressure blower and a centrifugal fan?
Volume is the trade: these blowers give up airflow quantity to hold output where a standard centrifugal fan would stall.
What static pressure can these blowers reach?
Ratings across the four lines run to 80 inches water gauge, with model by model figures in the tables above.
Can these blowers handle dust and grit in the airstream?
Yes, the Hartzell Series 07 platform is built for air carrying dust and grit at temperatures to 200°F.
Which housing materials are available for corrosive airstreams?
Steel, aluminum, 304 and 316 stainless, hot dipped galvanized, and fiberglass, depending on the model selected.
Find the Right Pressure Blower for Your System
The right blower depends on your CFM, static pressure, temperature, and what is riding in the airstream. Send us those four numbers and we will come back with models that fit.
