Centrifugal Fans for High-Pressure Industrial Applications
High-pressure airflow systems demand reliable equipment that won’t fail during critical operations. J. E. Phillips Co., Inc.’s (JEPCO’s) manufacturers make centrifugal fans that deliver robust and efficient solutions for managing high-pressure airflow in various industrial applications, with rotating impeller technology that increases air velocity and directs airflow outward for superior performance.
Key Benefits: Proven high-pressure performance up to 60″+ WG, comprehensive material options for different environments, reliable CFM capacities, and multiple drive configurations.
- CFM: capacities up to 800,000 CFM
- Static Pressure: up to 78″
- Temp Range: up to ~2,200 F
- Fan Size: 12″ to 60″
- Belt Drive, Direct Drive
- Material Type: Steel, 304 SST, 316 SST, Alum, Marine, Fiberglass
- HARTZELL
- CINCINNATI FAN
- IAP
- DANIELS FANS
- SPENCER
- PDF DOWNLOADS
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Series 03 | Centrifugal, Backward Inclined, Backward Curved, Airfoil | Steel, Stainless Steel, Aluminum | Up to 169,500 CFM | Up to 20” WG |
| Series 04 | In-Line Centrifugal, Backward Inclined, Backward Curved | Steel, Stainless Steel, Aluminum | Up to 75,000 CFM | Up to 16” WG |
| Series 05 | Industrial Exhauster, Centrifugal, Backward Inclined | Steel, Stainless Steel, Aluminum | Up to 46,000 CFM | Up to 46” WG |
| Series 07 | Pressure Blower, Radial Centrifugal | Steel, Stainless Steel, Aluminum | Up to 1,600 CFM | Up to 14” WG |

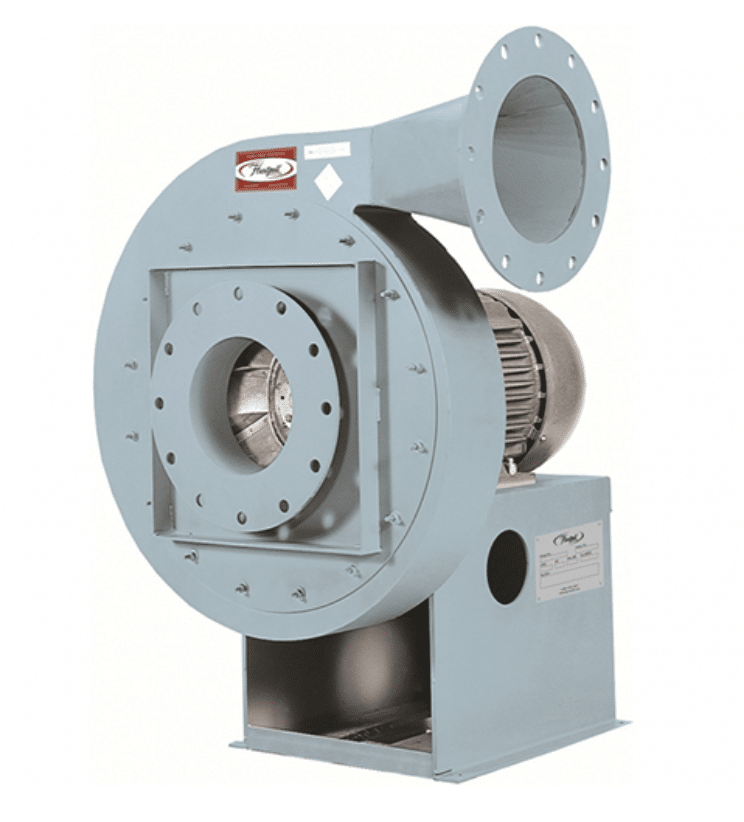

| Series 07T | Turbo Pressure Blower, Centrifugal | Steel, Stainless Steel, Aluminum | Up to 5,250 CFM | Up to 60” WG |
| Series 12 | Plug Fan, Backward Curve | Steel, Stainless Steel, Aluminum | Up to 28,000 CFM | Up to 12” WG |
| Series 13 | Backward Curved Centrifugal Fan, Double Width | Steel, Stainless Steel, Aluminum | Up to 186,000 CFM | Up to 14” WG |
| Series 40 | Fiberglass Inline Centrifugal Blowers Belt Drive | Fiberglass Reinforced Plastic (FRP) | Up to 90,000 CFM | Up to 12” WG |
| Series 41 | Fiberglass Backward Curved Centrifugal Fan | Fiberglass Reinforced Plastic (FRP) | Up to 120,000 CFM | Up to 30” WG |
| Series 42 | Fiberglass Pressure Blower | Fiberglass Reinforced Plastic (FRP) | Up to 1,500 CFM | Up to 12” WG |
| Series 43 | Fiberglass Radial Blower | Fiberglass Reinforced Plastic (FRP) | Up to 11,500 CFM | Up to 16” WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Model HDBI | Backward Inclined Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 500 to 80,000 CFM | Up to 12 in. WG |
| Model RBE | Radial Blade Centrifugal Fan | Carbon Steel, Stainless Steel | 200 to 45,000 CFM | Up to 15 in. WG |
| Model HDAF | Airfoil Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 1,000 to 100,000 CFM | Up to 14 in. WG |
| Model SQBI | Backward Inclined Square Fan | Carbon Steel, Stainless Steel, Aluminum | 700 to 85,000 CFM | Up to 10 in. WG |
| Model SQAF | Airfoil Square Fan | Carbon Steel, Stainless Steel, Aluminum | 800 to 90,000 CFM | Up to 12 in. WG |
| Model CPF | Backward Inclined Plug Fan | Carbon Steel, Stainless Steel, Aluminum | 500 to 70,000 CFM | Up to 8 in. WG |
| Model CPAF | Airfoil Plug Fan | Carbon Steel, Stainless Steel, Aluminum | 600 to 75,000 CFM | Up to 9 in. WG |
| Model PB | Cast Aluminum Pressure Blower | Cast Aluminum | 300 to 22,000 CFM | Up to 22 in. WG |
| Model PBS | Fabricated Steel Pressure Blower | Fabricated Steel | 400 to 30,000 CFM | Up to 24 in. WG |
| Model SPB | Die-Formed Steel Pressure Blower | Die-Formed Steel | 350 to 25,000 CFM | Up to 20 in. WG |
| Model HP-I | High Pressure Blower | Carbon Steel, Stainless Steel, Aluminum | 200 to 40,000 CFM | Up to 30 in. WG |
| Model HP-II | High Pressure Blower | Carbon Steel, Stainless Steel, Aluminum | 250 to 50,000 CFM | Up to 35 in. WG |
| Model LM & LMF | Volume Fan, Belt Drive | Carbon Steel, Stainless Steel, Aluminum | 500 to 65,000 CFM | Up to 10 in. WG |
| Model BAF | Belt Driven Tube Axial Fan | Carbon Steel, Stainless Steel, Aluminum | 700 to 75,000 CFM | Up to 8 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Type B Fan | Backward Inclined Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 800 to 85,000 CFM | Up to 10 in. WG |
| Type XBC | Backward Curved Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 1,000 to 90,000 CFM | Up to 12 in. WG |
| Type A | Airfoil Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 1,200 to 95,000 CFM | Up to 14 in. WG |
| Type ORB | Radial Blade Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 500 to 75,000 CFM | Up to 18 in. WG |
| Type P | Radial Tip Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 700 to 80,000 CFM | Up to 16 in. WG |
| Type WT | Wool Trip Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 800 to 85,000 CFM | Up to 15 in. WG |
| Type XRT | Radial Tip Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 900 to 100,000 CFM | Up to 17 in. WG |
| Type HP | High Pressure Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 500 to 50,000 CFM | Up to 22 in. WG |
| Type HPB | High Pressure Blower | Carbon Steel, Stainless Steel, Aluminum | 300 to 35,000 CFM | Up to 24 in. WG |
| Type F | Forward Curved | Carbon Steel, Stainless Steel, Aluminum | 600 to 75,000 CFM | Up to 8 in. WG |
| Type ICA | Inline Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 1,000 to 85,000 CFM | Up to 10 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Model OPB | Radial Blade Centrifugal Fan, Open Paddle Wheel | Carbon Steel, Stainless Steel, Aluminum | 500 to 85,000 CFM | Up to 20 in. WG |
| Model MFC | Forward Curved Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 1,000 to 75,000 CFM | Up to 10 in. WG |
| Model BIF | High Temperature Backward Inclined Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 1,500 to 95,000 CFM | Up to 12 in. WG |
| Custom High Temp Fans | Carbon Steel, Stainless Steel, Aluminum, Custom Alloys | Customizable to specifications | Customizable to specifications | |
| Double Discharge Fan | Carbon Steel, Stainless Steel, Aluminum | 2,000 to 100,000 CFM | Up to 15 in. WG | |
| Jet-Cooler Fan | Carbon Steel, Stainless Steel, Aluminum | 2,500 to 120,000 CFM | Up to 18 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| SOH | Multistage Fabricated Centrifugal Blower | Carbon Steel, Stainless Steel, Aluminum | 1,000 to 80,000 CFM | Up to 30 in. WG |
| 4BOH | Multistage Fabricated Centrifugal Blower | Carbon Steel, Stainless Steel, Aluminum | 1,500 to 100,000 CFM | Up to 35 in. WG |
| 4BOB | Multistage Fabricated Centrifugal Blower | Carbon Steel, Stainless Steel, Aluminum | 1,800 to 110,000 CFM | Up to 38 in. WG |
| Power Mizer Centrifugal Blower | Single Stage Centrifugal Blower | Carbon Steel, Stainless Steel, Aluminum | 2,000 to 120,000 CFM | Up to 40 in. WG |

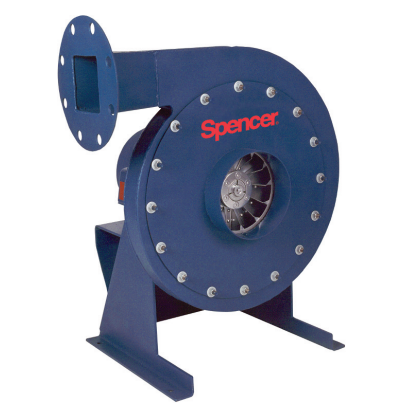

| Scroll Blowers | Scroll Blower, Single Stage | Carbon Steel, Stainless Steel, Aluminum | 500 to 75,000 CFM | Up to 25 in. WG |
| Vortex Blowers | Vortex Regenerative Blowers | |||
| Industravac |
Please contact us for details on our full backward curved fan selection, additional models are available!
What Material Construction Should You Specify?
JEPCO’s manufacturers make centrifugal fans out of specialized materials , coatings, and different fan configurations to match your environmental requirements and operational conditions.
Steel Construction: Standard industrial applications with moderate environmental exposure
Stainless Steel Construction: Enhanced corrosion resistance for demanding environments
Aluminum Construction: Lightweight option with good corrosion resistance
Fiberglass Reinforced Plastic (FRP): Superior chemical resistance for corrosive environments and specialized industrial applications
Other: Specialty materials can be used for fan construction for special applications
What Performance Capabilities Can You Expect?
JEPCO’s manufacturer’s centrifugal fans deliver consistent performance across a wide range of operating conditions, with specifications designed for industrial reliability.
Pressure Performance:
- Static pressure capabilities up to 60+” WG across multiple series
- Consistent performance from low-pressure applications (0″ WG) to high-pressure systems (60+” WG)
Airflow Capacity:
- Range from 250CFM up to 186,000 CFM
- Multiple CFM options within each model to match specific requirements
Temperature Range:
- Standard configurations handle up to 200°F with FRP fans
- Higher temperature options available with steel, stainless steel, aluminum, and specialty materials
Drive Options:
- Belt drive configurations for performance control through the drives and belts
- Direct drive options for easier maintenance, and VFD’s can be used to control the RPM of the fan
- Various motor mounting arrangements
How Do JEPCO Fans Integrate with Existing Systems?
JEPCO’s manufacturer’s centrifugal fans utilize rotating impeller technology that increases air velocity and directs it outward from the center to the periphery of the fan, making them particularly effective in environments such as ventilation systems, moving air with a lot of SP, material handling, and air pollution control applications.
Integration Advantages:
- Backward inclined and backward curved designs optimize efficiency for ducted systems
- Multiple mounting configurations accommodate existing infrastructure
- Radial and material handling centrifugal fans designs handle dirtier air, lessening build up on the fan blade
- Belt and direct drive options fit different space and performance requirements
Application Suitability:
- Ventilation systems requiring consistent airflow
- Material handling systems with dust and debris
- Air pollution control requiring reliable performance
What Selection Criteria Should Guide Your Decision?
Choosing the optimal centrifugal fan requires matching your specific operational requirements with the appropriate series specifications.
Primary Selection Factors:
- Required CFM – Match your airflow needs with series capacity ranges
- System static pressure – Select series rated for your pressure requirements
- Environmental conditions – Choose materials appropriate for your atmosphere
- Space constraints – Consider mounting and drive configurations
- Temperature requirements – Verify operating temperature compatibility
Frequently Asked Questions
How do I determine which series matches my requirements?
Review the comprehensive specifications table comparing CFM ranges, static pressure capabilities, and material options. Contact JEPCO for application-specific guidance on series selection.
What’s the difference between backward inclined and backward curved designs?
Both designs optimize efficiency for high-pressure applications, with backward curved typically providing slightly better efficiency curves and backward inclined offering robust performance across varying conditions.
Can these fans handle variable operating conditions?
Yes, the rotating impeller technology and various series designs accommodate changing system requirements while maintaining performance efficiency.
What support is available for fan selection and specification?
JEPCO provides detailed specifications and can offer guidance on series selection. For complex applications, contact their technical team for application-specific recommendations.
How do fiberglass options compare to metal construction?
Fiberglass construction provides chemical resistance for a number of corrosive environments. While metal options can be used with higher temperature ranges and structural strength for high-pressure applications. Depending on the chemicals in your airstream different fan materials will work better for your application. Our manufacturers also offer special coatings, liners and special options to help protect your fan from the environment it’s in.
Contact JEPCO for Technical Analysis and Project Support
Ready to specify the right centrifugal fan for your high-pressure airflow requirements? JEPCO’s technical team can help you navigate the series options and ensure optimal performance for your specific application.
Get expert guidance on:
- Series selection based on your CFM and pressure requirements
- Material specification for your environmental conditions
- Integration planning for your existing systems
- Technical specifications and performance data
