Duct Fan
Duct fans are specialized fans designed to be installed within ductwork to optimize airflow in HVAC systems, ventilation systems, and industrial processes. They help distribute air more efficiently throughout a building or facility, ensuring consistent temperature control and air quality. Duct fans are often used to boost airflow in long duct runs, overcome resistance caused by filters or other obstructions, and improve the overall efficiency of heating, cooling, and ventilation systems.
- CFM: capacities up to 156,000 CFM
- Static Pressure: 80” WG
- Temp Range: Up to 2200°F
- Material Type: Steel, Stainless Steel, Aluminum
Available in various sizes and configurations, duct fans are essential for maintaining optimal air circulation in a wide range of commercial and industrial applications.
REQUEST QUOTE- HARTZEL
- CINCINNATI FAN
- IAP
- Daniels Fans
- PDF DOWNLOADS
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Series 29 | Fiberglass Direct Drive Duct Axial Fan | Fiberglass Reinforced Plastic (FRP) | Up to 68,000 CFM | Up to 4.5 in. WG |
| Series 31 | Belt Drive Duct Fan | Carbon Steel, Stainless Steel, Aluminum | Up to 157,000 CFM | Up to 1.25 in. WG |

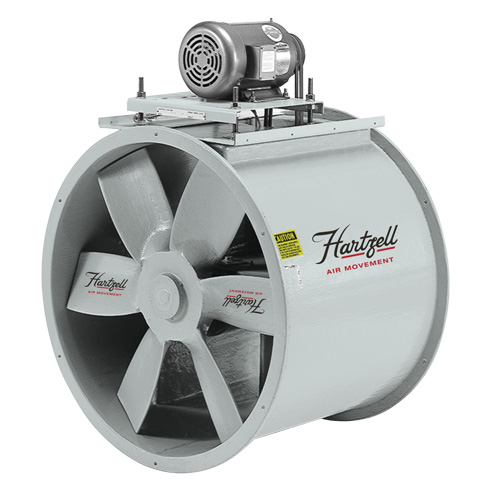

| Series 35 | Fiberglass Belt Drive Duct Axial Flow Fan | Fiberglass Reinforced Plastic (FRP) | Up to 30,000 CFM | Up to 4.5 in. WG |
| Series 39 | Direct Drive Duct Fan | Carbon Steel, Stainless Steel, Aluminum | Up to 29,000 CFM | Up to 2.5 in. WG |
| Series 46 | Belt Drive Duct Axial Fan | Carbon Steel, Stainless Steel, Aluminum | Up to 70,000 CFM | Up to 4 in. WG |
| Series 48 | Direct Drive Duct Axial Fan | Carbon Steel, Stainless Steel, Aluminum | Up to 68,000 CFM | Up to 4.5 in. WG |
| Series 54 | Belt Drive Vaneaxial Fan | Carbon Steel, Stainless Steel, Aluminum | Up to 116,000 CFM | Up to 12 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|

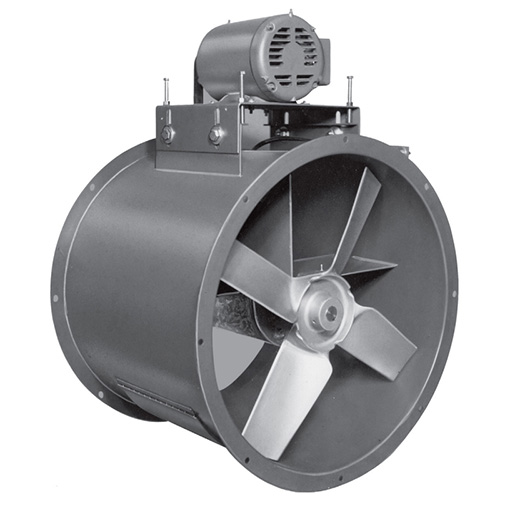

| Model BAF | Belt Driven Tube Axial Fan | Carbon Steel, Stainless Steel, Aluminum | 700 to 75,000 CFM | Up to 8 in. WG |
| Model TAF | Belt Driven Tube Axial Duct Fan | Carbon Steel, Stainless Steel, Aluminum | 800 to 80,000 CFM | Up to 9 in. WG |
| Model WAF | Wide Airfoil Centrifugal Fan | Carbon Steel, Stainless Steel, Coated Steel | 1,000 to 100,000 CFM | Up to 12 in. WG |
| Model HTF | High Temperature Centrifugal Fan | Heat-resistant Carbon Steel or Stainless Steel | 500 to 35,000 CFM | Up to 10 in. WG |
| Model DDF | Double Inlet, Double Width Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum, Coated Steel | 1,000 to 100,000 CFM | Up to 10 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Model BF | Belt Drive Axial Fan | Steel, Stainless Steel, Aluminum | 1,00 – 100,000 CFM | Up to 6 in. WG |
| Model DF | Direct Drive Axial Fan | Steel, Stainless Steel, Aluminum | 500 – 50,000 CFM | Up to 4 in. WG |
| Model BD | Belt Drive Centrifugal Fan | Steel, Stainless Steel, Aluminum | 500 – 200,000 CFM | Up to 40 in. WG |
| Model DD | Direct Drive Centrifugal Fan | Steel, Stainless Steel, Aluminum | 300 – 100,000 CFM | Up to 20 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure | Temperature |
|---|---|---|---|---|---|
| Model AFP | High Temperature Axial Fan | High-temperature resistant materials, including heavy-duty steel or stainless steel | Capable of handling volumes up to 118,000 CFM | Static pressures up to 4″ WG | Operating temperatures up to 1750°F (950°C) |
| Model BIF | High Temperature Backward Inclined Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 1,500 to 95,000 CFM | Up to 12 in. WG | Model BIF |
| Model MFC | Forward Curved Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 1,000 to 75,000 CFM | Up to 10 in. WG | Model MFC |
| Model OPB | Radial Blade Centrifugal Fan, Open Paddle Wheel | Carbon Steel, Stainless Steel, Aluminum | 500 to 85,000 CFM | Up to 20 in. WG | Model OPB |
Please contact us for details on our full backward curved fan selection, additional models are available!
Things to Consider When Buying Duct Fans
There are several key factors to consider to achieve optimal performance and compatibility with your application. Start by evaluating the required airflow (CFM) and static pressure (WG) to match your system’s needs. Assess the temperature range the fan will encounter, particularly for high-temperature or corrosive environments, and ensure the selected fan materials, such as steel, stainless steel, or fiberglass, are suitable for durability and longevity. Take into account the fan size and how it fits within your duct system. Verify the fan complies with any specific industry standards or regulations for safety and performance. You may also want to review noise levels and energy efficiency for operational comfort and cost savings.
J.E. Phillips Company Serves Duct Fan Application Needs
J.E. Phillips Company serves a variety of industries duct fans engineered to meet precise needs. We are proud to partner with Hartzell, Cincinnati Fan, IAP, Daniels Fans to offer duct fans in configurations to meet a wide array of application needs.
