Forward Curved Fans
Forward curved fans are a type of centrifugal fan that has blades curving in the direction of rotation. These fans are designed to move large volumes of air at low to medium pressure, making them well-suited for applications requiring low airflow, such as HVAC systems, air handling units, and exhaust systems. The forward-curved blades allow the fans to operate efficiently at lower speeds while producing a smooth, steady flow of air. While they’re typically less efficient at handling high-pressure applications and may require larger housings, compact design and quiet operation make forward curved fans a popular choice in commercial and residential ventilation systems where space and noise considerations are important.
- CFM: capacities up to 175,000 CFM
- Static Pressure:21” WG
- Temperature Range: Up to 1,650°F
- Fan Sizes: Up to 73″
- Material Type: Galvanized steel, Aluminum, Stainless steel (304, 316, 309, 310), Weldox, Inconel
- CINCINNATI FAN
- IAP
- DANIELS FANS
- PDF DOWNLOADS
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| HDAF Airfoil Fan | Forward Curved Airfoil Fan | Aluminum, Steel | Up to 48,551 CFM | Up to 21″ WG |

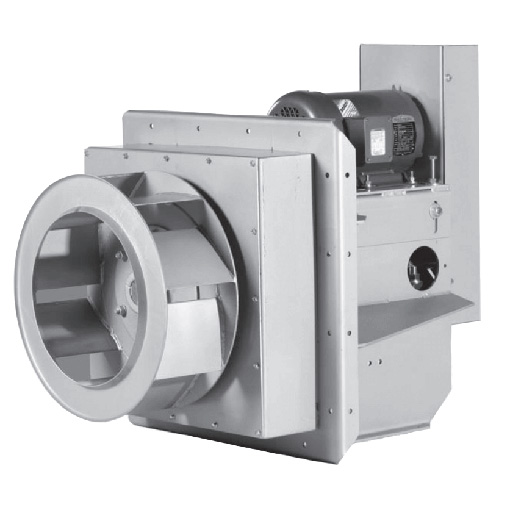

| CPAF Airfoil Plug Fan | Airfoil Plug Fan | Steel | Up to 42,000 CFM | Up to 18″ WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Type F Forward Curved Fan | Forward Curved Centrifugal Fan | Steel, Stainless Steel (304, 316) | Up to 12,500 CFM | Up to 80” |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| MFC Forward Curved High Temperature Fan | Forward Curved Centrifugal Fan | Stainless Steel (304, 316, 309, 310, 330), Inconel, Weldox | 2,000 to 175,000 CFM | Up to 16″ WG |
| AFP Axial Flow Plug Fan | Forward Curved Plug Fan | Stainless Steel, Carbon Steel | Up to 118,000 CFM | Up to 8″ WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
Things to Consider When Buying Forward Curved Fans
When specifying forward curved fans for industrial applications, begin by evaluating the airflow capacity and static pressure requirements – forward curved fans are designed for low to medium static pressure environments. Consider the efficiency and speed of the fan since forward curved fans can experience efficiency loss at higher speeds, and may require lower speeds for optimal performance. The material type should be chosen based on the operating environment. Options like galvanized steel or aluminum provide maximum durability. Additionally, forward curved fans are often more suitable for clean air applications, so the environmental conditions should be considered, particularly in dirty or corrosive environments
J.E. Phillips Company Serves Forward Curved Fan Needs
J.E. Phillips Company serves a wide range of industries with dependable forward curved fans. We are proud to partner with Hartzell, Cincinnati Fan, IAP, Daniels Fans to offer forward curved fans in configurations to meet a wide array of application needs.
