Industrial Exhaust Fan
Industrial exhaust fans are essential for maintaining optimal air quality and temperature control in industrial settings. They are engineered to efficiently remove heat, fumes, smoke, dust, and other airborne contaminants from factories, warehouses, plants, and other large facilities. By enabling adequate ventilation, industrial exhaust fans improve worker safety, enhance air quality, and contribute to the overall efficiency of many operations. Exhaust fans come in different sizes and configurations, including wall-mounted, roof-mounted, and ducted systems, tailored to meet the specific needs of different environments. In addition, they help reduce energy costs by supporting climate control systems and preventing equipment overheating.
- CFM: Up to 440,000
- Static Pressure: Up to 60″ SP
- Temperature Range: Up to 1200°F, with specialized models up to 2,200°F
- Fan Size: Available from 12″ to 66″
- Material Type: Aluminum, stainless steel
- HARTZELL
- CINCINNATI FAN
- IAP
- DANIELS FANS
- PDF DOWNLOADS
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|

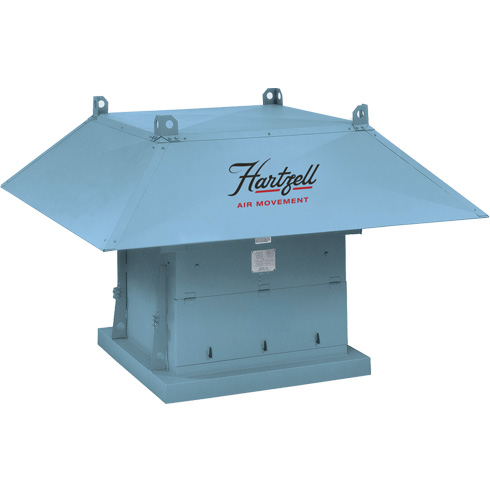

| Series 19E/19F/19I | Belt Drive Hooded Roof Ventilator – Exhaust or Filtered Intake or Intake | Steel, Aluminum, 304SS, 316SS | Up to 136,000 CFM | Up to .5” Static Pressure |
| Series 27 | Direct Drive Hooded, Recirculating Roof Ventilator | Steel, Aluminum | Up to 54,000 CFM | Up to 3/8” Static Pressure |
| Series 61 | Direct Drive Upblast Roof Ventilator | Steel, 304SS, 316SS | Up to 88,000 CFM | Up to .5” Static Pressure |
| Series 69/69H/69S | Belt Drive Upblast Roof Ventilator, Smoke and Swingout Available | Steel, Aluminum, 304SS, 316SS | Up to 117,000 CFM | Up to .5” Static Pressure |
| Series 38S | Direct Drive Roof Ventilator Fan, Swingout Type | Steel, Aluminum. 304SS, 316SS | Up to 45,000 CFM | Up to 1.5” Static Pressure |
| Series 31S | Belt Drive Roof Ventilator, Swingout Type | Steel, Aluminum. 304SS, 316SS | Up to 69,500 CFM | Up to 1.5” Static Pressure |
| Series 39S | Direct Drive Adjustable Pitch Roof Ventilator, Swingout Type | Steel, Aluminum. 304SS, 316SS | Up to 59,000 CFM | Up to 2.5” Static Pressure |
| Series 46S | Belt Drive Roof Ventilator Axial Fan, Swingout Type | Steel, Aluminum, Stainless 304SS, 316SS | Up to 68,000 CFM | Up to 4” Static Pressure |
| Series 01R/01S/02R/02S | Direct Drive Ring and Panel Fans, and Wall Ventilators | Steel, Aluminum, Stainless 304SS, 316SS | Up to 108,000 CFM | Up to 1.5” Static Pressure |
| Series 08R/08S/09R/09S | Belt Drive Ring and Panel Fans, and Wall Ventilators | Steel, Aluminum, Stainless 304SS, 316SS | Up to 95,000 CFM | Up to 1.5” Static Pressure |
| Series 10R/10S | Belted, Low Speed, High Volume Ringe Fan Wall Ventilators | Steel, Aluminum, Stainless 304SS, 316SS | Up to 327,000 CFM | Up to 5/8” Static Pressure |
| Series 59 | Fiberglass Direct Drive Wall Ventilator | Fiberglass | Up to 56,000 CFM | Up to .5” Static Pressure |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|

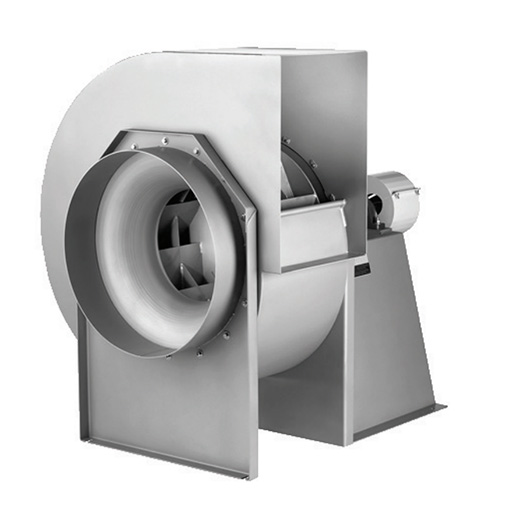

| Model HDB1 | Backward Inclined Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 500 to 80,000 CFM | Up to 12 in. WG |
| Model RBE | Radial Blade Centrifugal Fan | Carbon Steel, Stainless Steel | 200 to 45,000 CFM | Up to 15 in. WG |
| Model HDAF | Airfoil Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 1,000 to 100,000 CFM | Up to 14 in. WG |
| Model CPF | Backward Inclined Plug Fan | Carbon Steel, Stainless Steel, Aluminum | 500 to 70,000 CFM | Up to 8 in. WG |
| Model SQBi | Square Backward Inclined Centrifugal Fan | Aluminum, Stainless Steel | Up to 28,141 CFM | Up to 23 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Model CBI | Backward Inclined Centrifugal Fan | Carbon Steel, Stainless Steel | Up to 120,000 CFM | Up to 16 in. WG |
| Model AAF | Axial Flow Fan | Steel, Aluminum | Up to 200,000 CFM | Up to 4 in. WG |
| Model HAF | High-Temperature Axial Fan | Stainless Steel | Up to 150,000 CFM | Up to 6 in. WG |
| Model RCF | Radial Curved Fan | Carbon Steel, Stainless Steel | Up to 80,000 CFM | Up to 30 in. WG |
| Model DPB | Direct Drive Pressure Blowers | Cast Aluminum, Steel | Up to 45,000 CFM | Up to 40 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Model BI | Backward Inclined Blades Fan | Aluminum, Stainless Steel | Up to 150,000 CFM | Up to 20” SP |
| Model AFP | Axial Flow Fan | Aluminum, Stainless Steel | Up to 118,000 CFM | Up to 4″ SP |
| Model BIF | Backward Inclined Centrifugal Fan | Aluminum, Stainless Steel | Up to 440,000 CFM | Up to 40”SP |
| Model OPB | Open Paddle Wheel with Radial Blades | Stainless Steel | Up to 145,000 CFM | Up to 80″ SP |
| Model MFC | Forward Curved Bladed Centrifugal Fan | Aluminum, Stainless Steel | Up to 175,000 CFM | Up to 16″ SP |
Please contact us for details on our full backward curved fan selection, additional models are available!
Things to Consider When Buying Industrial Exhaust Fans
When purchasing industrial exhaust fans, several factors should be considered to ensure optimal performance and durability. It’s important to determine the required airflow capacity (CFM) based on the size of the space and the nature of the contaminants being exhausted. The static pressure rating indicates the fan’s ability to overcome resistance in the ductwork. The temperature range of the fan is especially significant in high-heat environments like industrial ovens or drying systems. The material type should be appropriate for the applications, with corrosion-resistant materials such as stainless steel or aluminum often preferred in harsh environments. Also, the fan size and configuration should take into account the available space and mounting requirements
J.E. Phillips Company Serves Industrial Exhaust Fan Application Needs
J.E. Phillips Company meets your specific application needs by working with you to understand your facility and processes. We are proud to partner with Hartzell, Cincinnati Fan, IAP, Daniels Fans to offer industrial exhaust fans in configurations to meet a wide array of application needs.
