Plug Fan
Plug fans are versatile, high-efficiency fans commonly used in industrial applications for process air handling, ventilation, and dust collection. Designed without scroll housings, plug fans can be installed directly into a plenum or ductwork, which makes them ideal for space-saving installations and retrofit projects. Plug fans are typically used in HVAC systems, cleanroom environments, drying systems, and other applications where precise control of airflow is critical. Their backward-inclined blades offer efficient air movement with lower energy consumption, while the open construction facilitates easy maintenance.
- CFM: capacities up to 145,000 CFM
- Static Pressure: 40” WG
- Temp Range: Up to 900°F (higher with specialized materials)
- Fan Size: 12″ to 66″
- Material Type: Aluminum, stainless steel
- HARTZELL
- CINCINNATI FAN
- IAP
- DANIELS FANS
- PDF DOWNLOADS
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|

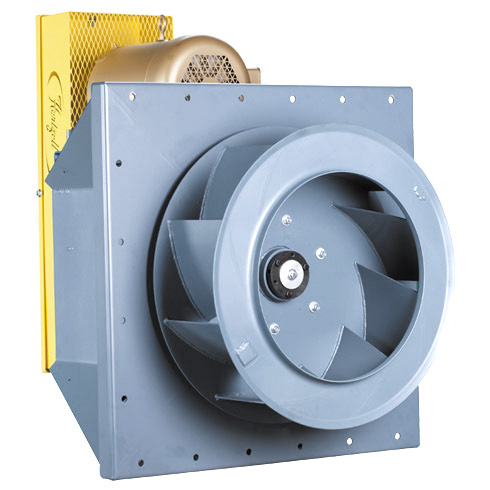

| Series 12 | Plug Fan | Carbon Steel, Stainless Steel, Aluminum | Up to 28,000 CFM | Up to 12” WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Model CPF | Backward Inclined Plug Fan | Carbon Steel, Stainless Steel, Aluminum | 500 to 70,000 CFM | Up to 8 in. WG |
| Model SQBI | Backward Inclined Square Fan | Carbon Steel, Stainless Steel, Aluminum | 700 to 85,000 CFM | Up to 10 in. WG |
| Model HDBI | Backward Inclined Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 500 to 80,000 CFM | Up to 12 in. WG |
| Model HDAF | Airfoil Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 1,000 to 100,000 CFM | Up to 14 in. WG |
| Model SQAF | Airfoil Square Fan | Carbon Steel, Stainless Steel, Aluminum | 800 to 90,000 CFM | Up to 12 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Model CBI-PF | Centrifugal Backward Inclined Plug Fan | Carbon Steel, Stainless Steel | Up to 100,000 CFM | Up to 10 in. WG |
| Model FCF-PF | Forward Curved Centrifugal Plug Fan | Carbon Steel, Stainless Steel, | Up to 80,000 CFM | Up to 8 in. WG |
| Model RAF-PF | Radial Plug Fan | Carbon Steel, Stainless Steel | Up to 60,000 CFM | Up to 12 in. WG |
| Model DDP-PF | Direct Drive Plug Fan | Cast Aluminum, Steel | Up to 75,000 CFM | Up to 15 in. WG |
| Model HTP-PF | High-Temperature Plug Fan | Stainless Steel | Up to 150,000 CFM | Up to 20 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Model BI | Backward Inclined Plug Fan | Aluminum, Stainless Steel | Up to 150,000 CFM | Up to 20 in. WG |
| Model AFP | Axial Flow Plug Fan | Aluminum, Stainless Steel | Up to 118,000 CFM | Up to 4 in. WG |
| Model BIF | Backward Inclined Fan | Aluminum, Stainless Steel | Up to 100,000 CFM | Up to 40 in. WG |
| Model MFC | Forward Curved Plug Fan | Aluminum, Stainless Steel | Up to 118,000 CFM | Up to 4 in. WG |
| Model OPB | Open Paddle Wheel Plug Fan | Stainless Steel | Up to 440,000 CFM | Up to 40 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
Things to Consider When Buying Plug Fans
When purchasing plug fans, first consider the airflow capacity (CFM) required to efficiently ventilate or move air through your system. Also think about the static pressure the fan can handle since this affects how well the fan can overcome resistance in the system. If the plug fan will be used in a high-heat environment, make sure the temperature range accommodates operation at extreme temperatures. Keep in mind fan size and the available space for installation, as well as environmental conditions like humidity or corrosive elements.
J.E. Phillips Company Serves Plug Fan Application Needs
J.E. Phillips Company meets your specific application needs by working with you to understand your facility and processes. We are proud to partner with Hartzell, Cincinnati Fan, IAP, Daniels Fans to offer plug fans in configurations to meet a wide array of application needs.
