Supply Fan
Supply fans are essential components in industrial ventilation systems. These fans are designed to supply consistent airflow to maintain air quality, temperature, and pressure balance within industrial environments. They are commonly used in applications like HVAC systems, material handling, drying processes, and general air circulation. Supply fans come in various types, offering different performance characteristics to meet diverse needs. These fans are constructed to withstand harsh environmental conditions, including high temperatures, corrosive atmospheres, or particulate-laden air.
- CFM: capacities up to 440,000 CFM
- Static Pressure: 80” WG
- Temp Range: From ambient temperatures up to extreme heat conditions 2200°F
- Fan Size: 12″ to 100″, depending on the fan type and model
- Material Type: Stainless steel, carbon steel, aluminum, and specialty alloys for high-temperature or corrosive environments
- HARTZELL
- CINCINNATI FAN
- IAP
- DANIELS FANS
- PDF DOWNLOADS
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Series 15I | Hooded Roof Ventilator | Carbon Steel, Stainless Steel, Aluminum | Up to 90,000 CFM | Up to 0.5″ WG |
| Series 16I | Hooded Roof Ventilator | Carbon Steel, Stainless Steel, Aluminum | Up to 131,000 CFM | Up to 0.5″ WG |
| Series 19I | Hooded Roof Ventilator | Carbon Steel, Stainless Steel, Aluminum | Up to 131,000 CFM | Up to 0.5″ WG |
| Series 01 | Ring Fan | Carbon Steel, Stainless Steel, Aluminum | Up to 108,000 CFM | Up to 1.5″ WG |

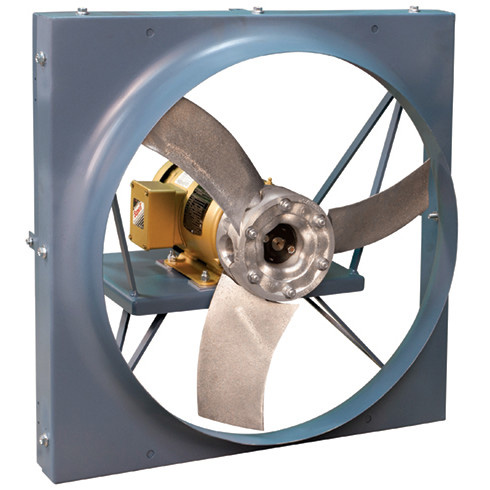

| Series 02 | Panel Fan | Carbon Steel, Stainless Steel, Aluminum | Up to 67,000 CFM | Up to 1.5″ WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| BAF | Tube Axial Duct Fan | Steel, Stainless Steel, Aluminum | Up to 44,500 CFM | Up to 10″ WG |
| AC | Air Circulator | Steel, Aluminum | Up to 19,000 CFM | |
| PF | Propeller Fan | Cast Aluminum, Steel | Up to 38,650 CFM | Up to 0.75″ WG |
| TAF | Tube Axial Fan | Steel, Stainless Steel, Aluminum | Up to 44,500 CFM | Up to 10″ WG |
| PMC | Personnel Cooler | Steel, Aluminum | Up to 28,490 CFM |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| AF Series | Axial Fan | Steel, Stainless Steel | Up to 200,000 CFM | Up to 6″ WG |
| TA Series | Tube Axial Fan | Carbon Steel, Stainless Steel | Up to 150,000 CFM | Up to 5″ WG |
| PF Series | Panel Fan | Aluminum, Stainless Steel | Up to 100,000 CFM | Up to 2″ WG |
| VA Series | Vane Axial Fan | Carbon Steel, Stainless Steel | Up to 175,000 CFM | Up to 8″ WG |
| RS Series | Roof Supply Fan | Steel, Stainless Steel | Up to 120,000 CFM | Up to 3″ WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| AFP | Axial Flow Fan | Stainless Steel (304, 316, 309, 310, Duplex 2205, Incoloy 800, Inconel 617) | Up to 118,000 CFM | Up to 4″ WG |
| BIF | Backward Inclined Centrifugal Fan | Stainless Steel (304, 316, 309, 310, Duplex 2205) | Up to 440,000 CFM | Up to 40″ WG |
| OPB | Radial Blade Centrifugal Fan | Stainless Steel (304, 316, 309, 310, Inconel, Hastelloy) | Up to 145,000 CFM | Up to 80″ WG |
| MFC | Forward Curved Centrifugal Fan | Stainless Steel | Up to 175,000 CFM | Up to 16″ WG |
| HPA | High-Pressure Axial Fan | Weldox, Stainless Steel | Up to 118,000 CFM | Up to 6″ WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
Things to Consider When Buying Supply Fans
When buying supply fans for industrial use, several key factors must be considered. Think about the airflow capacity (CFM) needed based on the size of the area and the ventilation requirements, as this determines the fan’s ability to move air effectively. Next, consider the static pressure the fan can handle, particularly in systems with long ductwork or high resistance. The temperature range is important if the application is in high-heat environments like furnaces or drying systems. Also, be sure to keep the installation space in mind when selecting the size and mounting configuration.
J.E. Phillips Company Serves Supply Fan Needs
J.E. Phillips Company meets your specific application needs by working with you to understand your facility and processes. We are proud to partner with Hartzell, Cincinnati Fan, IAP, Daniels Fans to offer supply fans in configurations to meet a wide array of application needs.
