Tube Axial Fan
Tube axial fans move large volumes of air efficiently through ducts or confined spaces. They feature a cylindrical housing with an axial airflow design, making them a reliable choice for applications requiring straight-line airflow, such as ventilation, cooling, and exhaust. Known for their compact design, high airflow rates, and energy efficiency, tube axial fans are well-suited for industries where maintaining air quality, temperature control, and proper ventilation are critical.
- CFM: capacities up to 200,000 CFM
- Static Pressure: 10” WG
- Temperature Range: Up to 375°F
- Fan Size: 12″ to 60″
- Material Type: Steel, stainless steel, aluminum, and fiberglass options available
Tube axial fans are commonly used in manufacturing plants, warehouses, and chemical processing facilities. Their customizable sizes, materials, and mounting options make them versatile for various industrial needs.
REQUEST QUOTE- HARTZELL
- CINCINNATI FAN
- IAP
- PDF DOWNLOADS
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|

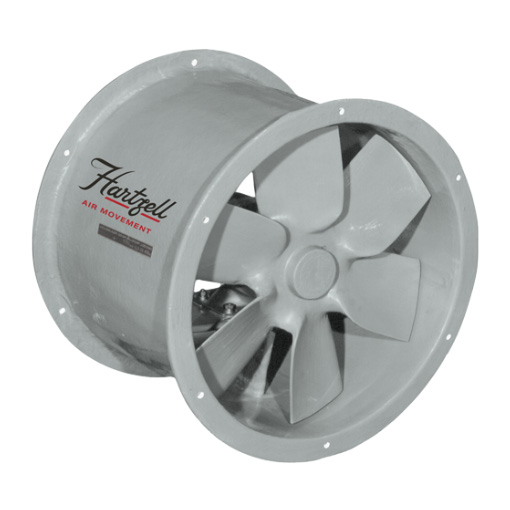

| Series 29/29V | Direct Drive Fiberglass Axial Flow Fan / Vane Axial option | Fiberglass Reinforced Plastic (FRP) | Up to 68,000 CFM | Up to 4.5 in. WG |
| Series 59 | Fiberglass Direct Drive Wall Ventilator | Fiberglass Reinforced Plastic (FRP) | Up to 68,000 CFM | Up to 4.5 in. WG |
| Series 56 | Special Duty Direct Drive Vaneaxial Fan | Steel, 304SS, 16SS, Hot Dipped Galvanized | Up to 57,000 CFM | Up to 14 in. WG |
| Series 31/31U | Belt Drive Duct Fan | Steel, Aluminum, 304SS or 316SS | Up to 157,000 CFM | Up to 1.25 in. WG |
| Series 35/35V | Fiberglass Axial Flow Fan, Vaneaxial option | Fiberglass Reinforced Plastic (FRP) | Up to 30,000 CFM | Up to 4.5 in. WG |
| Series 38 | Direct Drive Duct Fan, | Steel, Aluminum, 304SS, 16SS, Hot Dipped Galvanized | Up to 45,000 CFM | Up to 1.25 in. WG |
| Series 39/39V | Direct Drive Adjustable Pitch Duct Fan | Steel, Aluminum 304SS, 16SS, Hot Dipped Galvanized | Up to 29,000 CFM | Up to 2.5 in. WG |
| Series 54 | Belt Drive Vaneaxial | Steel, Aluminum, 304SS, 316SS | Up to 116,000 CFM | Up to 12 in. WG |
| Series 55 | Belt Drive Vaneaxial Fan, High Temperature | Steel, Aluminum, Stainless 304SS, 316SS | Up to 104,000 CFM | Up to 10 in. WG |
| Series 44/44V | Special Duty Direct Drive Duct Axial Fan, Marine Duty Option. Vaneaxial option | Steel, Aluminum, 304SS, 16SS, Hot Dipped Galvanized | Up to 92,000 CFM | Up to 4 in. WG |
| Series 46/46V | Belt Drive Duct Axial Fan | Steel, Aluminum, Stainless 304SS, 316SS | Up to 70,000 CFM | Up to 4 in. WG |
| Series 28/28B | Fiberglass Direct Drive Duct Fan. Bifurcated Fan Option | Fiberglass Reinforced Plastic (FRP) | Up to 66,000 CFM | Up to 1.25 in. WG |
| Series 48/48V | Direct Drive Duct Axial Fan | Steel, Aluminum, Stainless 304SS, 16SS, Hot Dipped Galvanized | Up to 68,000 CFM | Up to 4.5 in. WG |
| Series 52 | Tubeaxial Fan (Direct Drive) Marine Duty Optional | Steel, Aluminum, Stainless 304SS, 16SS, Hot Dipped Galvanized | Up to 12,000 CFM | Up to 6 in. WG |
| Series 53C | Direct Drive Vaneaxial Fan, c-face motor, Marine Duty Optional | Steel, Aluminum, Stainless 304SS, 16SS, Hot Dipped Galvanized | Up to 108,000 CFM | Up to 5 in. WG |
| Series 34 | Fiberglass Belt Direct Drive Duct Fan | Fiberglass Reinforced Plastic (FRP) | Up to 63,000 CFM | Up to 1.25 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Model BAF | Backward Inclined Airfoil Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum, Coated Steel | 500 to 60,000 CFM | Up to 3 in. WG |
| Model TAF | Tubeaxial Fan | Carbon Steel, Stainless Steel, Coated Steel | 1,000 to 70,000 CFM | Up to 5 in. WG |
| Model WAF | Wide Airfoil Centrifugal Fan | Carbon Steel, Stainless Steel, Coated Steel | 1,000 to 100,000 CFM | Up to 12 in. WG |
| Model HTF | High Temperature Centrifugal Fan | Heat-resistant Carbon Steel or Stainless Steel | 500 to 35,000 CFM | Up to 10 in. WG |
| Model DDF | Double Inlet, Double Width Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum, Coated Steel | 1,000 to 100,000 CFM | Up to 10 in. WG |
| Model AC | Air Curtain Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum, Coated Steel | 500 to 20,000 CFM | Up to 2 in. WG |
| Model PF | Plug Fan for Air Handling Units | Carbon Steel, Stainless Steel, Coated Steel | 500 to 50,000 CFM | Up to 6 in. WG |
| Model PMC | Pressure Blower | Carbon Steel, Stainless Steel, Aluminum, Coated Steel | 100 to 15,000 CFM | Up to 80 in. WG |
| Model CIM | Centrifugal Inline Fan | Carbon Steel, Stainless Steel, Coated Steel | 500 to 35,000 CFM | Up to 6 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Type B Fan | Backward Inclined Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 800 to 85,000 CFM | Up to 10 in. WG |
| Type XBC | Backward Curved Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 1,000 to 90,000 CFM | Up to 12 in. WG |
| Type A | Airfoil Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 1,200 to 95,000 CFM | Up to 14 in. WG |
| Type ORB | Radial Blade Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 500 to 75,000 CFM | Up to 18 in. WG |
| Type P | Radial Tip Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 700 to 80,000 CFM | Up to 16 in. WG |
| Type WT | Wool Trip Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 800 to 85,000 CFM | Up to 15 in. WG |
| Type XRT | Radial Tip Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 900 to 100,000 CFM | Up to 17 in. WG |
| Type HP | High Pressure Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 500 to 50,000 CFM | Up to 22 in. WG |
| Type HPB | High Pressure Blower | Carbon Steel, Stainless Steel, Aluminum | 300 to 35,000 CFM | Up to 24 in. WG |
| Type F | Forward Curved | Carbon Steel, Stainless Steel, Aluminum | 600 to 75,000 CFM | Up to 8 in. WG |
| Type ICA | Inline Centrifugal Fan | Carbon Steel, Stainless Steel, Aluminum | 1,000 to 85,000 CFM | Up to 10 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
Things to Consider When Buying Tube Axial Fans
When purchasing tube axial fans, consider specific application requirements, including air flow (CFM) and static pressure (SPWG) needs, to ensure optimal performance. Evaluate the temperature range the fan must operate in, particularly for high-temperature environments, to select a fan with appropriate construction materials and coatings. Fan size is also an important factor, as it must fit within the available space while meeting capacity demands. Material type—such as steel, stainless steel, aluminum, or fiberglass—should align with the environmental conditions, including exposure to corrosive substances or moisture. Energy efficiency, noise levels, and the manufacturer’s reputation for quality and support should also be considered.
J.E. Phillips Company Serves Tube Axial Fan Application Needs
J.E. Phillips Company meets your specific application needs by working with you to understand your facility and processes. We are proud to partner with Hartzell, Cincinnati Fan, IAP, Daniels Fans to offer tube axial fans in configurations to meet a wide array of application needs.
