Ventilator Fan
Ventilator fans are crucial for maintaining optimal air quality, temperature control, and safety in a variety of environments. Designed to move large volumes of air efficiently, these fans are used in manufacturing facilities, warehouses, power plants, and other industrial settings to expel heat, fumes, and contaminants while ensuring proper ventilation. Available in a range of designs, industrial ventilator fans can be customized for specific applications such as exhaust, supply, or process air handling. Their robust construction, energy efficiency, and ability to operate under demanding conditions make them indispensable for improving workplace productivity and compliance with safety standards.
- Airflow Capacities up to 100,000 CFM
- Static Pressure: Up to 20” WG
- Temperature Range: Up to 1,000°F
- Fan Size: 12″ to 120″
- Material Type: Carbon steel, stainless steel, aluminum, and special alloys
- HARTZELL
- CINCINNATI FAN
- IAP
- DANIELS FANS
- PDF DOWNLOADS
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Series 15 | Hooded Roof Ventilator | Carbon Steel, Stainless Steel, Aluminum | Up to 90,000 CFM | Up to 0.5″ WG |
| Series 16 | Hooded Roof Ventilator | Carbon Steel, Stainless Steel, Aluminum | Up to 131,000 CFM | Up to 0.5″ WG |
| Series 03 | Centrifugal, Backward Inclined, Backward Curved, Airfoil | Steel, Stainless Steel, Aluminum | Up to 169,500 CFM | Up to 20” WG |
| Series 69 | Belt Drive Upblast Roof Ventilator, Smoke and Swingout Available | Steel, Aluminum, 304SS, 316SS | Up to 117,000 CFM | Up to 0.5”WG |
| Series 61 | Direct Drive Upblast Roof Ventilator | Steel, 304SS, 316SS | Up to 88,000 CFM | Up to 0.5”WG |
| Series 01 | Ring Fan | Carbon Steel, Stainless Steel, Aluminum | Up to 108,000 CFM | Up to 1.5″ WG |
| Series 02 | Panel Fan | Carbon Steel, Stainless Steel, Aluminum | Up to 67,000 CFM | Up to 1.5″ WG |
| Series 59 | Fiberglass Wall Ventilator | Fiberglass | Up to 56,000 CFM | Up to 0.5”WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| HDBI | Backward Inclined Fan | Steel, Aluminum | Up to 150,000 CFM | Up to 25 in. WG |
| CPAF | Airfoil Plug Fan | Steel, Aluminum | Up to 42,000 CFM | Up to 18 in. WG |
| CPF | Backward Inclined Plug Fan | Steel, Aluminum | Up to 100,000 CFM | Up to 25 in. WG |
| LM | Volume Fan | Cast Aluminum | Up to 2,000 CFM | Up to 4 in. WG |
| PL | Airfoil Plenum Fan | Steel, Aluminum | Up to 33,000 CFM | Up to 25 in. WG |

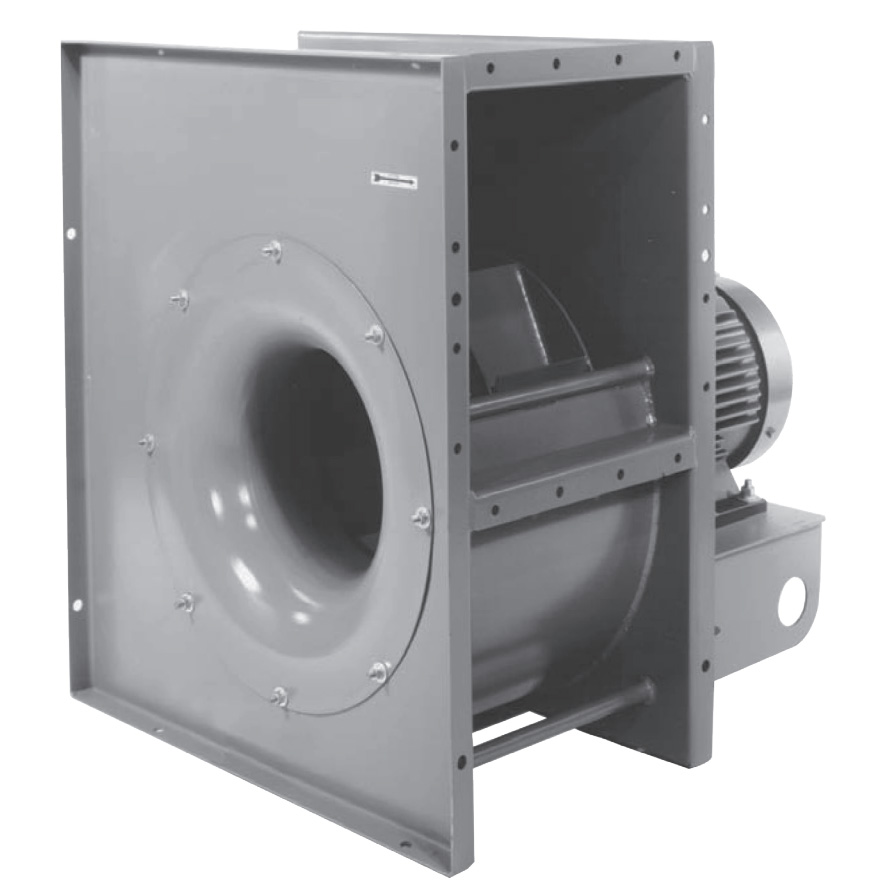

| SQBI | Backward Inclined Square Fan | Steel, Aluminum | Up to 28,141 CFM | Up to 23 in. WG |
| PB | Cast Aluminum Pressure Blower | Cast Aluminum | Up to 4,500 CFM | Up to 20 in. WG |
| PBS | Fabricated Steel Pressure Blower | Steel, Aluminum | Up to 4,462 CFM | Up to 20 in. WG |
| BAF | Tube Axial Duct Fan | Steel, Aluminum | Up to 44,500 CFM | Up to 10 in. WG |
| RBE | Radial Blade Exhauster | Steel, Aluminum | Up to 22,528 CFM | Up to 41 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| Type B | Backward Inclined Fan | Steel, Aluminum | Up to 450,000 CFM | Up to 26 in. WG |
| Type A | Airfoil Fan | Steel, Aluminum | Up to 800,000 CFM | Up to 24 in. WG |
| Type XBC | Backward Curved Fan | Steel, Aluminum | Up to 375,000 CFM | Up to 40 in. WG |
| Type ORB | Open Radial Blade Fan | Steel, Aluminum | Up to 175,000 CFM | Up to 40 in. WG |
| Type XRT | Radial Tip Fan | Steel, Aluminum | Up to 200,000 CFM | Up to 50 in. WG |
| Type HP | High Pressure Fan | Steel, Aluminum | Up to 175,000 CFM | Up to 100 in. WG |
| Type HPB | High Pressure Blower | Aluminum Alloy, Steel | Up to 2,200 CFM | Up to 50 in. WG |
| Type F | Forward Curved Fan | Steel, Aluminum | Up to 250,000 CFM | Up to 8 in. WG |
| Type TAX | Tubeaxial Fan | Steel, Aluminum | Up to 150,000 CFM | Up to 10 in. WG |
| Type VAX | Vaneaxial Fan | Steel, Aluminum | Up to 300,000 CFM | Up to 30 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
| Model | Type | Material | Airflow | Static Pressure |
|---|---|---|---|---|
| AFP | Axial Flow Fan | Various Alloys | Up to 118,000 CFM | Up to 4 in. WG |
| BIF | Backward Inclined Fan | Various Alloys | Up to 440,000 CFM | Up to 40 in. WG |
| MFC | Forward Curved Fan | Various Alloys | Up to 175,000 CFM | Up to 16 in. WG |
| OPB | Radial Blade Fan | Various Alloys | Up to 145,000 CFM | Up to 80 in. WG |
| BC | Backward Curved Fan | Aluminum, Stainless Steel | Up to 180,000 CFM | Up to 36 in. WG |
| BI | Backward Inclined Fan | Aluminum, Stainless Steel | Up to 150,000 CFM | Up to 20 in. WG |
| HDBI | Backward Inclined Fan | Steel, Aluminum | Up to 150,000 CFM | Up to 25 in. WG |
| CPAF | Airfoil Plug Fan | Steel, Aluminum | Up to 42,000 CFM | Up to 18 in. WG |
| CPF | Backward Inclined Plug Fan | Steel, Aluminum | Up to 100,000 CFM | Up to 25 in. WG |
| SQBI | Backward Inclined Square Fan | Steel, Aluminum | Up to 28,141 CFM | Up to 23 in. WG |
Please contact us for details on our full backward curved fan selection, additional models are available!
Things to Consider When Buying Ventilator Fans
When buying ventilator fans, consider factors such as airflow capacity (CFM) to ensure the fan meets your ventilation requirements, and static pressure capabilities to handle resistance in the system. Assess the operating temperature range and material construction to ensure the fan can withstand the environmental conditions and any corrosive or abrasive elements. The fan size should align with space constraints and installation requirements. Other considerations include energy efficiency, noise levels, and maintenance needs. Customization options and compliance with industry standards are also critical to ensure the fan suits your specific application.
J.E. Phillips Company Serves Ventilator Fan Application Needs
J.E. Phillips Company meets your specific application needs by working with you to understand your facility and processes. We are proud to partner with Hartzell, Cincinnati Fan, IAP, Daniels Fans to offer ventilator fans in configurations to meet a wide array of application needs.
